"Universal Testing Machine" or someone
called "Tensile and Compression Tester" has been used to analyse the
physical properties of products in main purpose to indicated the "strength" of material. It has been used in wide range of products;
including, but not limited to: rubber, plastics, composites, textiles, metals, concrete, woods, electronics,
welded specimens, adhesives, medical products and components. There are many types of grips and attachments
can be used with this machine for many type of testing such as Tension, Compression, Flexural or Bending, Shear,
Friction, Tearing, Peeling and the others depended on test standards. The electromechanical type that suitable for low load testing
use precise motor to drive the crosshead along the lead screws and measure the indicated force by
"Load Cell" that generate the high accuracy of test results.
For high load testing, the suitable machine is hydraulic type. It use the hydraulic pump and valves to control piston in cylinder
up or down and load is measured by the pressure transducer. The hydraulic type require low-maintenance and easy to be operated.
Click to see reference users
Click to see reference users
-
Single Column Benchtop Universal Testing Machine
ST Series: Capacity 1 kN to 5 kN
Force accuracy+/-0.1% from 0.2% to 100% of capacity and 1 in 8 million resolution Minimum speed test 0.1 micron/minute New frame extruded aluminium and ABS plastic cabinet covers Fully touch screen control and display technology with powerful Software New Bluetooth handheld controller and built-In camera -
Twin Columns Benchtop Universal Testing Machine
ST Series: Capacity 10 kN to 50 kN
Force accuracy+/-0.1% from 0.2% to 100% of capacity and 1 in 8 million resolution Minimum speed test 0.1 micron/minute New frame extruded aluminium and ABS plastic cabinet covers Fully touch screen control and display technology with powerful Software New Bluetooth handheld controller and built-In camera -
Electromechanical Floor Universal Testing Machine
ST Series: Capacity 100 kN to 300 kN
Force accuracy+/-0.1% from 0.2% to 100% of capacity and 1 in 8 million resolution Minimum speed test 0.1 micron/minute New frame extruded aluminium and ABS plastic cabinet covers Fully touch screen control and display technology with powerful Software New Bluetooth handheld controller and built-In camera -
Light Hydraulic Universal Testing Machine
SL Series: Capacity 150 kN to 300 kN
Force accuracy+/-0.1% from 0.2% to 100% of capacity and 1 in 8 million resolution Minimum speed test 0.1 micron/minute Force sampling rate 1000 sps ABS Plastic cabinet covers Touch Screen control and display technology with powerful Software New Bluetooth handheld controller and built-In camera
-
Heavy Hydraulic Universal Testing Machine
SL Series: Capacity 600 kN to 3000 kN
Force accuracy+/-0.1% from 0.2% to 100% of capacity and 1 in 8 million resolution Minimum speed test 0.1 micron/minute Force sampling rate 1000 sps ABS Plastic cabinet covers Touch Screen control and display technology with powerful Software New Bluetooth handheld controller and built-In camera -
UTM Accessories - Extensometer - Video Extensometer

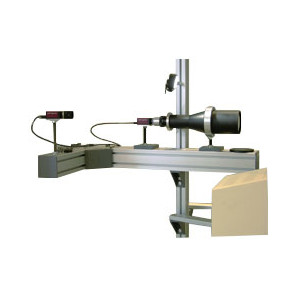

Tinius Olsen VDO Extensometer
Choose axial, axial-transverse, orthogonal, rotational measurements Maximize measurement versatility with point-to-point methodology Measure fragile, brittle, irregular, and other difficult specimens without contact Meet requirements for ASTM E83 Class B1, ISO 9513 Class 0.5 and EN 10002-4 standards Capture and archive video images for later review Use multiple cameras and longitudinal gage lengths to study complex events -
UTM Accessories - Extensometer - Automatic Extensometer

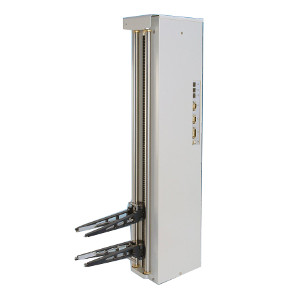

Tinius Olsen Auto Extensometer
Accuracy to ISO 9513 Class 0.5 and ASTM E83 Class B1 capable Two-sided measurement by means of 4 measuring sensors Very high resolution up to 0.1 μm is possible over the complete measuring range Very low clamping forces allow testing of foils and thin wires The round knife edges can be utilized along their entire perimeter by simply rotating them The L0 value can be set precisely by control computer -
UTM Accessories - Extensometer - Laser Extensometer
500LC
Laser scan rate of 320 scans per second Preparation of the test specimen is quick and easy The gauge length is defined by attaching these two reflective strips to the sample Elongation characteristics can then be evaluated from –70° C to 300° C Up to 600 mm of scan range
